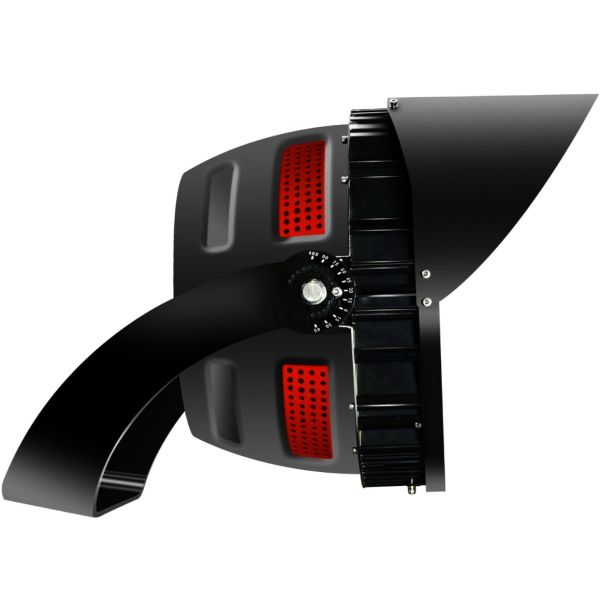

High Brightness LED Stadium Light SKD IP66 Waterproof Outdoor LED Flood Lights

Brand Name : Vbrite

Model Number : VB-SF23

Certification : CE

Place of Origin : China

Name : IP66 Waterproof Outdoor LED Flood Lights

Power : 300W/ 500W/ 1000W/ 1250W

LED chip : Lumileds 5050 /OSRAM/CREE/Customized 5050

CCT : 3000K/4000K/5000K/5700K/6500K

CRI : >70(>80,>90 optional)

IP Rating : IP66

Lifetime : >50,000 hours

MOQ : 10PCS

Packaging Details : Carton Packing

Delivery Time : 10~15Day

Payment Terms : L/C,T/T,D/A,D/P,Western Union

Contact Now

IP66 Waterproof Light Outdoor Floodlight Stadium Light Led Stadium Light SKD

Product Description

High-brightness LED lighting solutions designed for professional stadiums, stadiums and large outdoor sports venues, using high-efficiency 5050 three-chip LED technology, power coverage of 300W-1250W, with IP66 waterproof and dustproof rating, to ensure stable operation in bad weather. High light efficiency, long life, low energy consumption, meet the needs of event-level lighting, suitable for football fields, basketball courts, tennis courts, badminton halls and other sports venues.

Specification

Model

VB-SF23-300

VB-SF23-500

VB-SF23-1000

VB-SF23-1250

Power

300W

500W

1000W

1250W

Voltage

100-277AC / 200-480AC

LED chip

Lumileds 5050 /OSRAM/CREE/Customized 5050

CCT

3000K/4000K/5000K/5700K/6500K

CRI

>70(>80,>90 optional)

Power Factor

>0.93

Surge Protectin

20KV Current Surge

Dimming control

0- 10V/DMX/DALI

Efficacy

133lm/w

132m/w

130lm/w

126m/w

Lumen Flux

39750 Lm

66000 Lm

130000 Lm

157560 Lm

Beam Type

10° / 30°

10° / 30°

10°/ 15°/25°/40°/80°

10°/ 15°/25°/40°/80°

EPA

1.32 ft2

1.32 ft2

1.98 ft2

1.98 ft2

IP Rating

IP66

Working Temp.(°C)

-40℃~50℃

Storage Temp.(°C)

-40℃~50℃

Lifetime

>50,000 hours

N.W.(KG)

13.6KG

13.6KG

27.2KG

27.2KG

Product Dimension

Φ381*391 mm

Φ381*391 mm

Φ478*508 mm

Φ478*508 mm

Features

  1. VB-SF23 LED stadium light adopts customized 5050 LED chips
  2. High efficacy(150lm/w)
  3. IP66 rating
  4. Beam angle(10°/15°/25°/30°/40°/80°) optional
  5. Equipped with SPD and DMX512 for precise control.

Advantage

  1. 3000k-6500K LED stadium light is aimed at different scale sport, environment lighting projects
  2. 300W to 1250W specification optional,
  3. 5050 LED chip

Application

Outdoor, Indoor sport space, basketball, football, badminton, etc
